S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

Beijing Jiayetongchuang Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply from wholesalers

    Buy cheap S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply from wholesalers
    • Buy cheap S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply from wholesalers

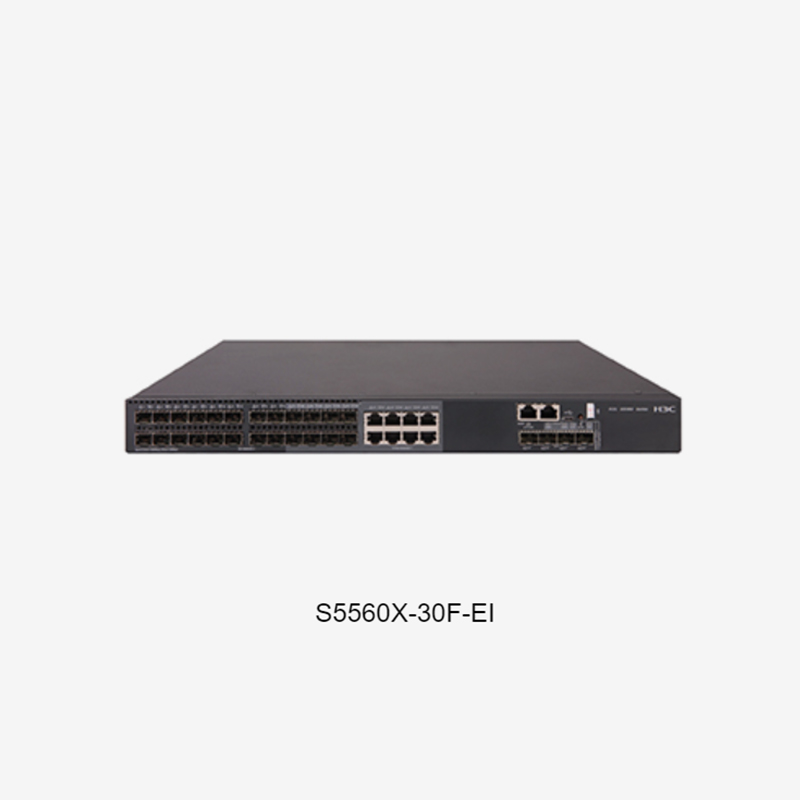

    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    Ask Lasest Price
    Brand Name : OEM
    Model Number : H3C S5560X-30F-EI
    Certification : CE, RoHS, Other
    Supply Ability : 10000 Set/Sets per Month
    Price : $1,200.00 - $1,400.00/sets
    • Product Details
    • Company Profile

    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    Products Description

    H3C S5560X-EI is a series of intelligent scalable GE switches with outstanding performance, high port density, and ease of installation. It offers the following benefits:
    1.Industry-leading high-performance hardware architecture with H3C's state-of-the-art Comware 7 operating system.
    2.Seamless wired and wireless integration on a unified switching platform. The license-based wireless access controller functionality enables wired and wireless local forwarding at the access layer, eliminates the bandwidth bottlenecks typical of a wireless controller, expands wireless deployment, and saves TCO.
    3.Reliable hardware design with modular dual power supply and dual FAN design.
    4.Embedded SmartMC delivers the easiest and simplest network operation and management solution.
    5.Advanced free of charge enterprise features and functions like layered security, VxLAN, IRF and Macsec
    6.High-density 10/100/1000Base-T autosensing Ethernet ports or 10GE SFP + fiber ports on board
    7.One expansion slot,up to 9 optional interface cards that provide high density giga, 10GE, 25GE, 40GE and Multi-Giga access.
    As an access device on enterprise networks, the switch can provide GE connections for desktop applications. It can also be used as a core device on small- and medium-sized enterprise networks. On MAN or industrial networks, it provides GE access for users and transmits the aggregated traffic from downstream switches to core switches.
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    Item
    S5560X-30C-EI
    S5560X-54C-EI
    S5560X-30F-EI
    S5560X-54F-EI
    S5560X-30F-EIF
    Port Switching capacity
    288Gbps
    336Gbps
    288Gbps
    336Gbps
    288Gbps
    Box Switching capacity
    598Gbps/5.98Tbps
    Packet forwarding rate
    216 Mpps
    252 Mpps
    216 Mpps
    252 Mpps
    216 Mpps
    Dimensions (H × W × D)
    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
    43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in)
    Weight
    ≤ 6.7 kg (14.77 lb)
    ≤ 7.0 kg (15.43 lb)
    ≤ 6.6 kg (14.55 lb)
    ≤ 6.7 kg (14.77 lb)
    ≤ 3.2 kg (7.05 lb)
    Flash/SDRAM
    512MB/2GB
    Management Ethernet ports
    1
    Console ports
    1 × RJ-45 console port
    1 × Micro-USB console port
    Only the Micro-USB console port is available when you connect both ports.
    Service ports
    24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)
    4 × 10G SFP+ ports
    48 × 10/100/1000Base-T autosensing Ethernet ports
    4 × 10G SFP+ ports
    24 × SFP ports (including 8 combo interfaces)
    4 × 10G SFP+ ports
    48 × SFP ports
    4 × 10G SFP+ ports
    24 × SFP ports (including 8 combo interfaces)
    4 × 10G SFP+ ports
    2 x 40G QSFP+ ports
    More Products
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    NETWOK ROUTER
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    NETWORK SWITCH
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    FIREWALL
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    MODLES
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    WIERLESS AC
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

    WIERLESS AP
    Company Profile
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    Certifications
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    Product packaging
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
    FAQ
    Q1: Can I get some samples?
    A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

    Q2: Do you receive customized order?
    A: Yes, ODM & OEM are welcomed.

    Q3:
    What's the lead time.
    A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

    Q4:
    What's your warranty terms?
    A: We supply 12 months warranty time.

    Q5:
    What's your payment terms?
    A: We receive Escrow, T/T, West Union, Cash and etc
    S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply
