132Mpps S5735-L48T4X-A POE Network Switch With 4 10G SFP Ports

Ask Lasest Price
Brand Name :	OEM
Model Number :	CloudEngine S5735-L48T4X-A
Supply Ability :	10000 Set/Sets per Month
Price :	$100.00 - $300.00/sets

Add to Cart

Product Details
Company Profile

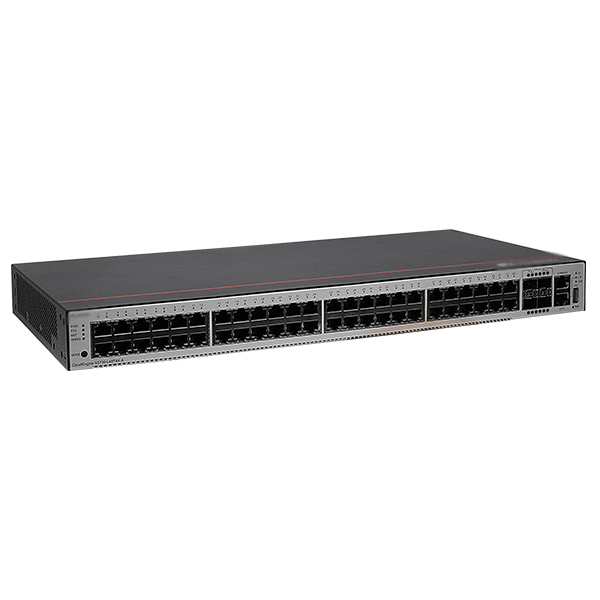

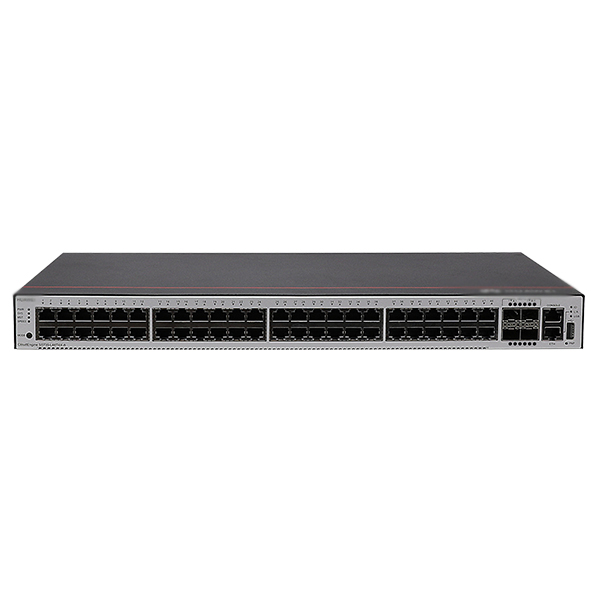

132Mpps S5735-L48T4X-A POE Network Switch With 4 10G SFP Ports

Forwarding Performance of 132 Mpps S5735-L48T4X-A 48-Port Switch with 4 10G SFP Ports

Products Description

CloudEngine S5735-L Series Switches
CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
CloudEngine S5735-L series switches are designed for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Versatile Routing Platform (VRP), CloudEngine
S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

CloudEngine S5731-L Series

Product Model	CloudEngine S5735-L12T4S-A CloudEngine S5735-L12P4S-A	CloudEngine S5735-L24T4S-A CloudEngine S5735-L24P4S-A	CloudEngine S5735-L24T4X-A CloudEngine S5735-L24T4X-D CloudEngine S5735-L24P4X-A	CloudEngine S5735-L48T4S-A	CloudEngine S5735-L48T4X-A CloudEngine S5735-L48P4X-A	CloudEngine S5735-L32ST4X-A CloudEngine S5735-L32ST4X-D
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbps/336 Gbps	56 Gbps/336 Gbps	128 Gbps/336 Gbps	104 Gbps/432 Gbps	176 Gbps/432 Gbps	144 Gbps/432 Gbps
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not support						supported	Not supported	supported	Not supported
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Modle	CloudEngine S5735-L8T4S-A1 CloudEngine S5735-L8P4S-A1	CloudEngine S5735-L8T4X-A1 CloudEngine S5735-L8P4X-A1	CloudEngine S5735-L24T4S-A1 loudEngine S5735-L24P4S-A1	CloudEngine S5735-L24T4X-A1/D1 CloudEngine S5735-L24P4X-A1	CloudEngine S5735-L48T4S-A1 CloudEngine S5735-L48P4S-A1	CloudEngine S5735-L48T4X-A1 CloudEngine S5735-L48P4X-A1
Forwarding Performance	18 Mpps	72 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps
Switching Capacity2	24 Gbps/336 Gbps	96 Gbps/336 Gbps	56 Gbps/336 Gbps	128 Gbps/336 Gbps	104 Gbps/432 Gbps	176 Gbps/432 Gbps
Fixed Ports	8 x 10/100/1000Base-T ports, 4 x GE SFP ports	8 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735-L8P4S-A1: Support CloudEngine S5735-L8P4X-A1: Support CloudEngine S5735-L24P4S-A1: Support CloudEngine S5735-L24P4X-A1: Support CloudEngine S5735-L48P4S-A1: Support CloudEngine S5735-L48P4X-A1: Support Other models: Not support
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF)	Plug-and-play of SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client running
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Customer Reviews

More Products

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
