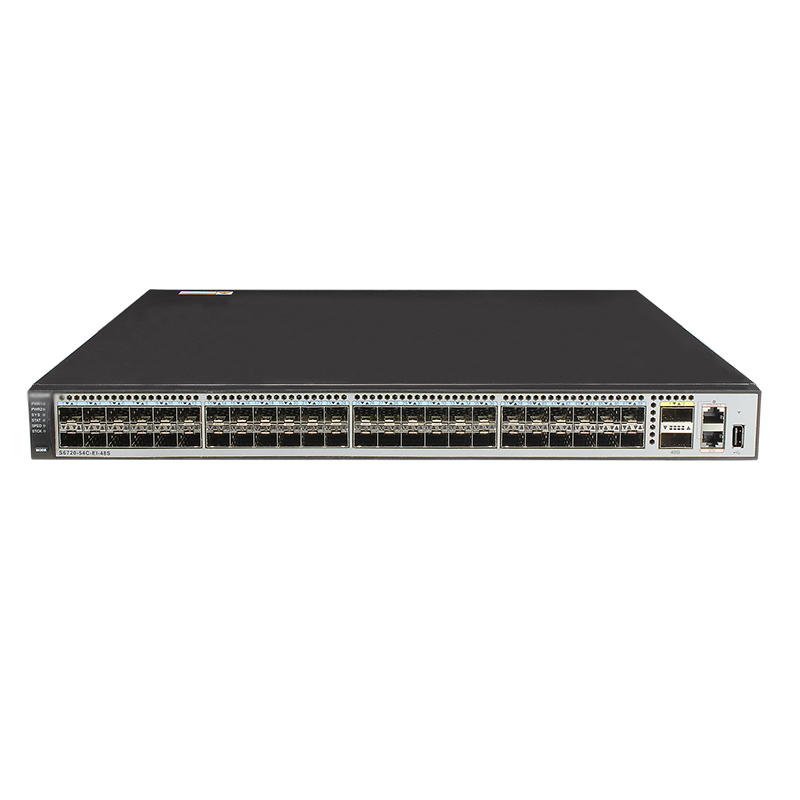

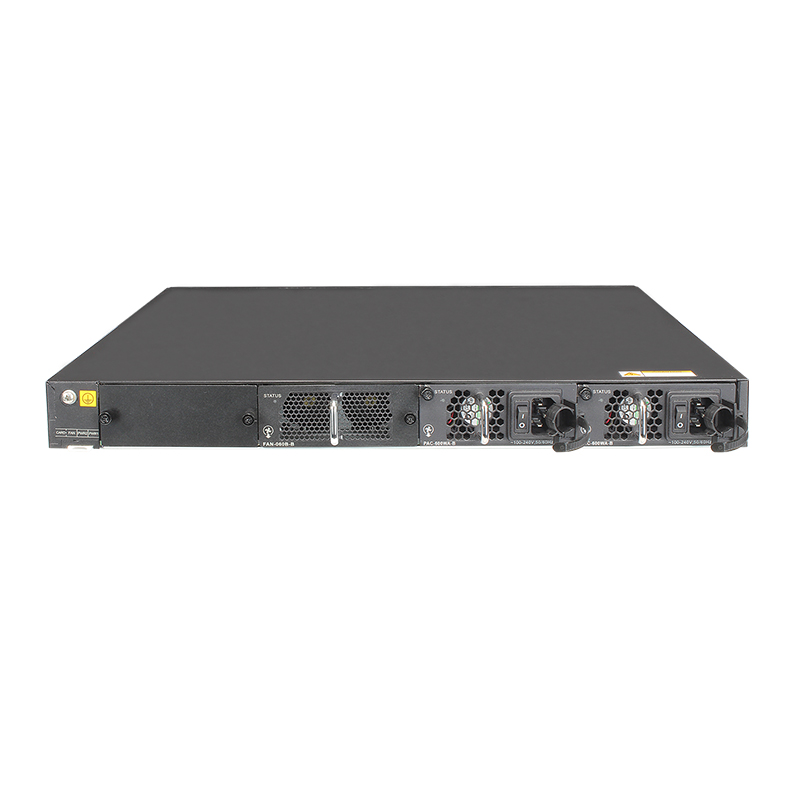

S6720-30C-EI-24S-AC S6720-54C-EI-48S-AC 24/48 PORTS 10GE Full-Duplex Half-Duplex Switch

Product Description

Industry-leading, high-performance S6720-EI series fixed switches provide extensive services, comprehensive security control policies, and various QoS features. The S6720-EI can be used for server access in data centers or as core switches for campus networks.

Specification

Product model	S6720-30C-EI-24S-AC S6720-30C-EI-24S-DC	S6720-54C-EI-48S-AC S6720-54C-EI-48S-DC	S6720S-26Q-EI-24S-AC
Switching Capacity	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s
Forwarding Performance	720 Mpps	1,080 Mpps	480 Mpps
Fixed Ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slots	One extended slot	One extended slot	Not supported
MAC Address Table	288k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ
IP Routing	Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy
Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

All-10 GE Switch with Up to Six 40 GE Uplink Ports

Provides line-rate 10 GE access ports and 40 GE uplink ports. The S6720-EI series switches are high-performance all-10 GE fixed switches developed

iStack

Supports iStack and configuration-free stacking. The bi-directional stack bandwidth has the capacity of 480 Gbit/s.

SVF for Ultra-Simplified Network O&M

Supports Super Virtual Fabric (SVF) to virtualize the network architecture of core/aggregation switches, access switches, and APs into a single NE for simplified network O&M. The S6720-EI can work as an SVF Parent or an SVF Client.

Company Profile

Beijing Jiayetongchuang Technology Co., Ltd. was founded in 2009 and based in Beijing China, Our company is a professional network equipment supplier, We focus on providing original new network products, including switches, routers, firewalls, wireless AP/AC, storages, servers, modules and so on. We haver over 10 years of rich experiences in trade and integration business, We have a excellent sales team and technical team to offer free consultations, high quality technical supports and thoughtful after-sales services for you at any time. "Quality first, price reasonable, honestly cooperate" is that we always adhere to the spirit of enterprise, We look forward to establishing a close rapport with you. Welcome to contact us !

Packing & Delivery

VR

Why Choose Us

1,Original new products 2,Reasonable price 3,Quickly deliver 4,Responsible after-sales service 5,Over 10 years experience

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc

Beijing Jiayetongchuang Technology Co Ltd. was found by 2009, with 20 million RMB registered assets and 89 employees. The headquarter of our company locats in Yingu building Haidian District, Beijing, and we have sub branches in other major cities in China including Shenyang, Wuhan, Fuzhou, Xiamen and Wulumuqi.

We have built good relationships with companies include CISCO, F5, NVIDIA, FORTINET, PANDUIT, HUAWEI, H3C, SANGFOR, HILLSTONE, NSFOCUS and THTF, and we have became the brand agent for most of those famous brands. Throughout over 10 years dedication in brand agency and commercial project integration management, we are now having 8 professional consulting agents for international market, 21 system integration sales for China domestic market and 16 before and after sales technicians who are authorized by CISCO, F5, NVIDIA, HUAWEI, H3C and other brands.

Integrity management and mutual benefit cooperation is the corporate values that our company insists all along. We are sincerely looking forward to build a close and long term business relationship with you, so please contact us at anytime and we will be more than happy to provide you with the product details, the overall project solution, high quality technical support and after sale services.
