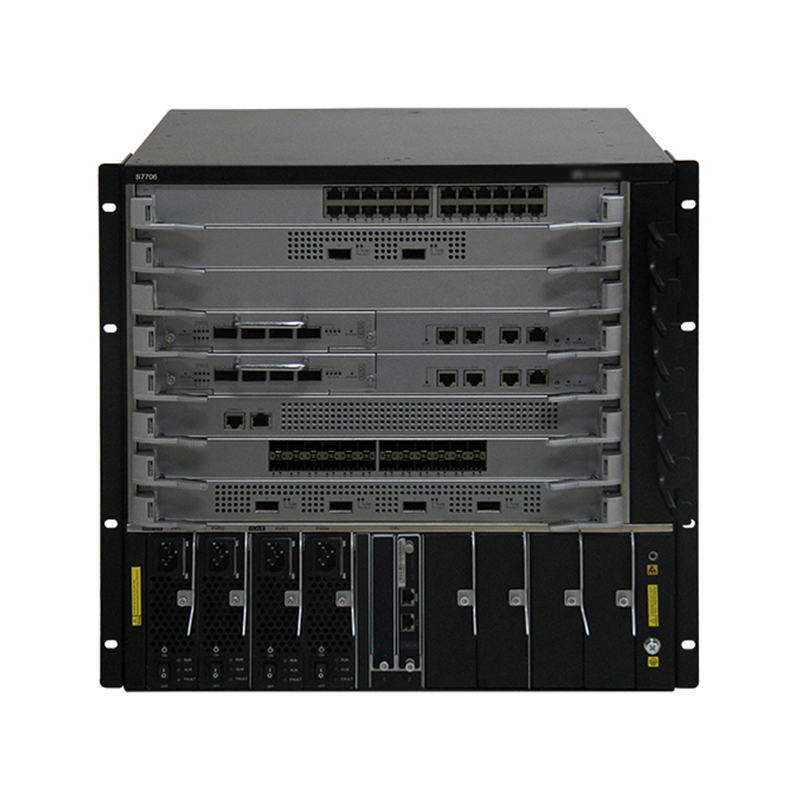

Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply

Beijing Jiayetongchuang Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers

    Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers
    • Buy cheap Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply from wholesalers

    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply

    Ask Lasest Price
    Brand Name : OEM
    Model Number : S7706
    Certification : CE, Other
    Supply Ability : 10000 Set/Sets per Month
    Price : $500.00 - $5,000.00/sets
    • Product Details
    • Company Profile

    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply

    100% Original S7706 PoE Core Switch Dual Main Control and Dual Power Supply MPU Slot 2
    Products Description
    S7700 Series Smart Routing Switches
    The S7700 series provide service optimization features like wired and wireless convergence, unified user management, quality
    awareness (iPCA), H-QoS, and united security. They provide 100 GE ports, support SVF 2.0, and have superb scalability and
    reliability.
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    CloudEngine S6730-H Series 10 GE Switches
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply

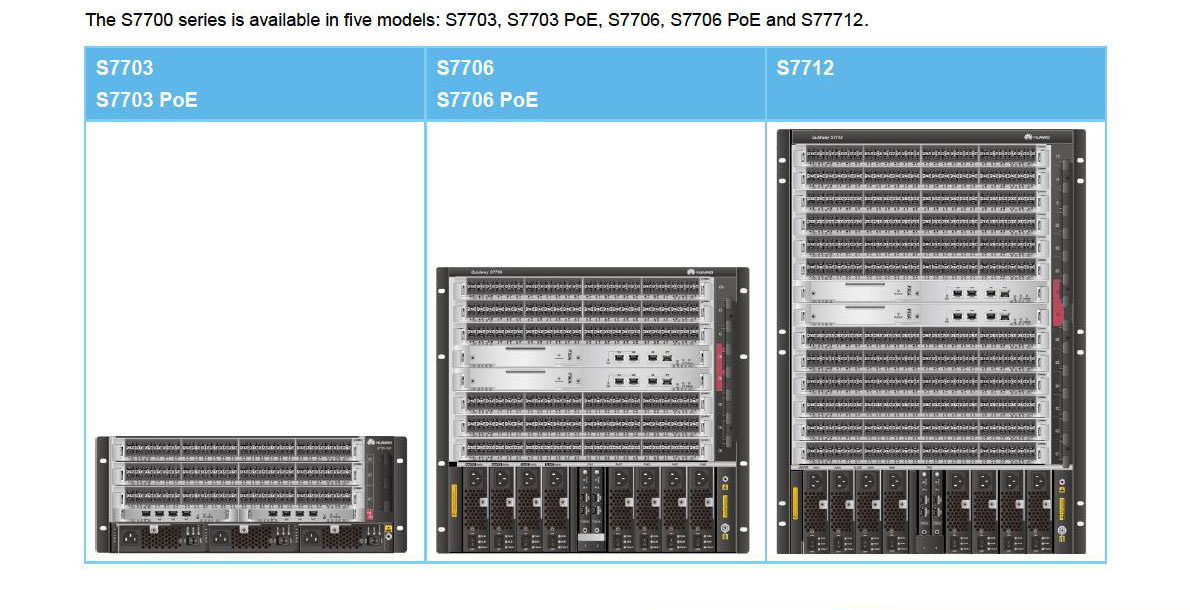

    Item
    S7703
    S7703 PoE
    S7706/S7706 PoE
    S7712
    Switching capacity
    1.92 Tbps
    4.8 Tbps
    4.32 Tbps
    4.64Tbps
    Forwarding performance
    1440 Mpps
    3600 Mpps
    3240 Mpps
    3480 Mpps
    Wireless Network Management
    Native AC
    AP access control, AP region management, and AP profile management
    Radio profile management, uniform static configuration, and centralized dynamic management
    Basic WLAN services, QoS, security, and user management
    Deployment of ACs on different network layers
    User Management
    Unified user management
    802.1x, MAC address, and Portal authentication
    Traffic-based and time-based accounting
    User authorization based on user groups, domains, and time ranges
    Routing
    IPv4 static routes, RIP, OSPF, IS-IS, and BGP4
    IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+
    IPv4/IPv6 equal-cost routes, policy routing, and route policy
    IPv4 and IPv6 stack
    Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6
    IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible
    automatic tunnel
    iPCA
    Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload
    Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks
    SVF
    Up to 256 clients (access switches) and 4,096 APs virtualized into a single device
    2-level AS structure
    Unified management on Huawei and non-Huawei devices
    Buffer Capacity
    Up to 200 ms per port
    Interoperability
    VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
    Link-type Negotiation Protocol (LNP) (similar to DTP)
    VLAN Central Management Protocol (VCMP) (similar to VTP)
    Optional Module
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    SRU
    * A main control unit, installed in slot 13 or 14 of an S7712
    * S7712's core component for system control and management, integrating main control, clock, and system maintenance units
    * Supports hot swapping and redundancy

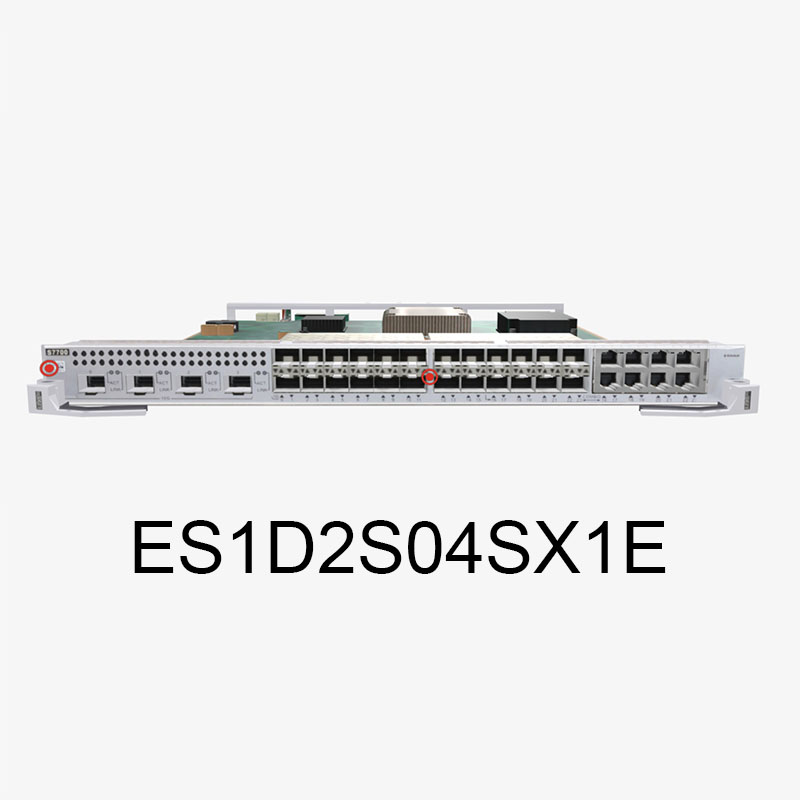

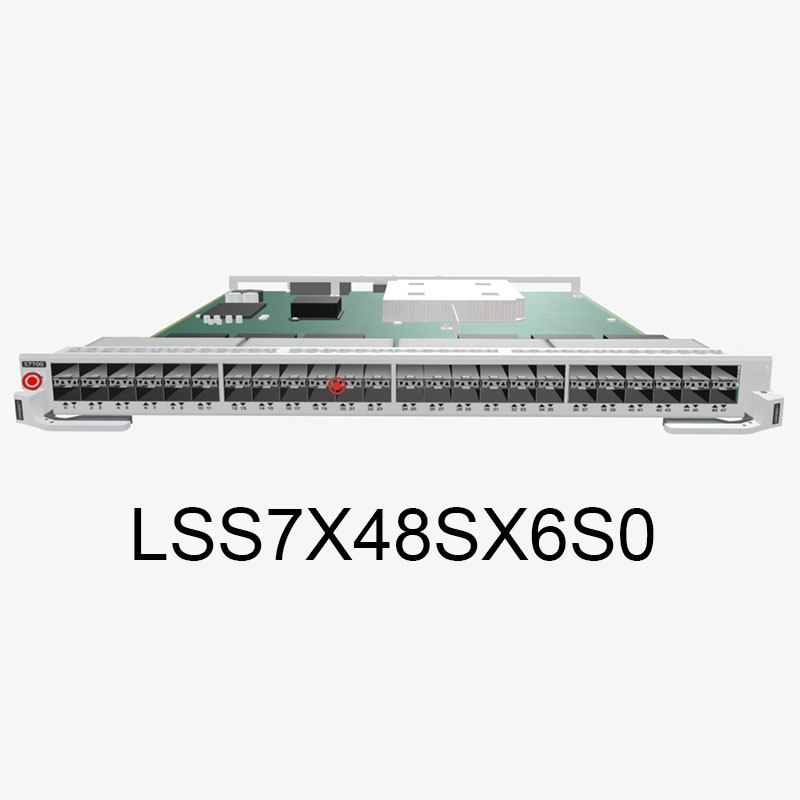

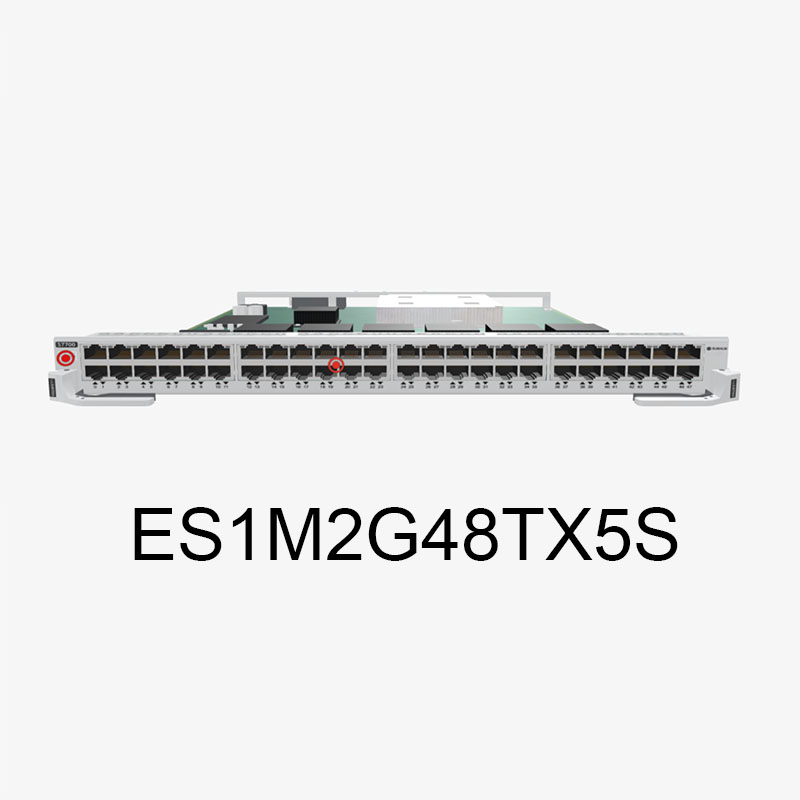

    LPU
    * Service interface card for S7712, installed in any of slots 1 to 12
    * Supports LAN/WAN switchover
    * Supports hot swapping
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    * Service interface card for S7712, installed in any of slots 1 to 12
    * Supports hot swapping
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    * Service interface card for S7712, installed in any of slots 1 to 12
    * Supports hot swapping
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply

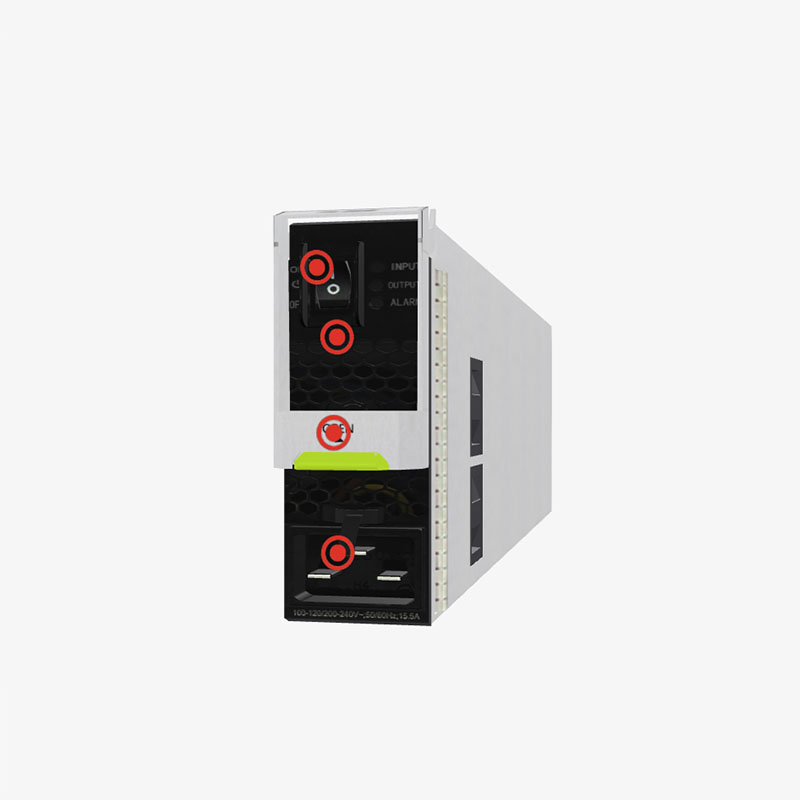

    Power Module
    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
    Others
    * 2200 W AC power module, a maximum of 2200 W power output, 3 U high standard structure
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    More Products
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Company Profile
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Certifications
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Product packaging
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    Original S7706 POE Network Switch 4.32 Tbps Dual Main Control Power Supply
    FAQ
    Q1: Can I get some samples?
    A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

    Q2: Do you receive customized order?
    A: Yes, ODM & OEM are welcomed.

    Q3:
    What's the lead time.
    A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

    Q4:
    What's your warranty terms?
    A: We supply 12 months warranty time.

    Q5:
    What's your payment terms?
    A: We receive Escrow, T/T, West Union, Cash and etc
