Beijing Jiayetongchuang Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | JYTCH |
| Model Number : | Fusionserver 2288H V6 |
| Supply Ability : | 10000 Set/Sets per Month |
| Price : | $7,000.00/sets >=2 sets |
Item | Specification |

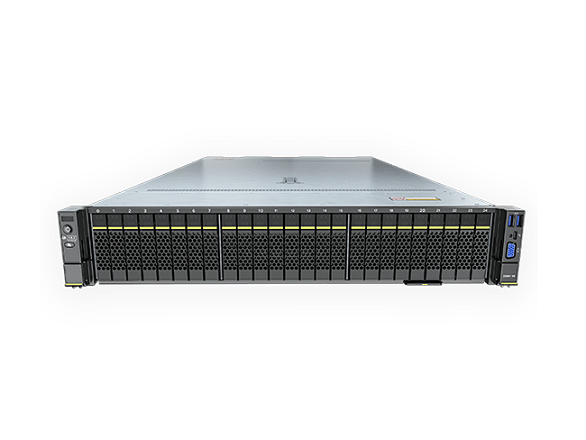

Model | FusionServer 2288H V6 SERVER |
Form Factor | 2U rack server |
Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors
(8300/6300/5300/4300 series), TDP up to 270 W |
Memory | 16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up
to 3200 MT/s |
Local storage | Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • 2 x M.2 SSDs |
RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor
for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
Network Ports | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hots wappable function supported |
PCIe Expansion | Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe
slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards. |
Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
|
|
