Brand Name : | OEM |

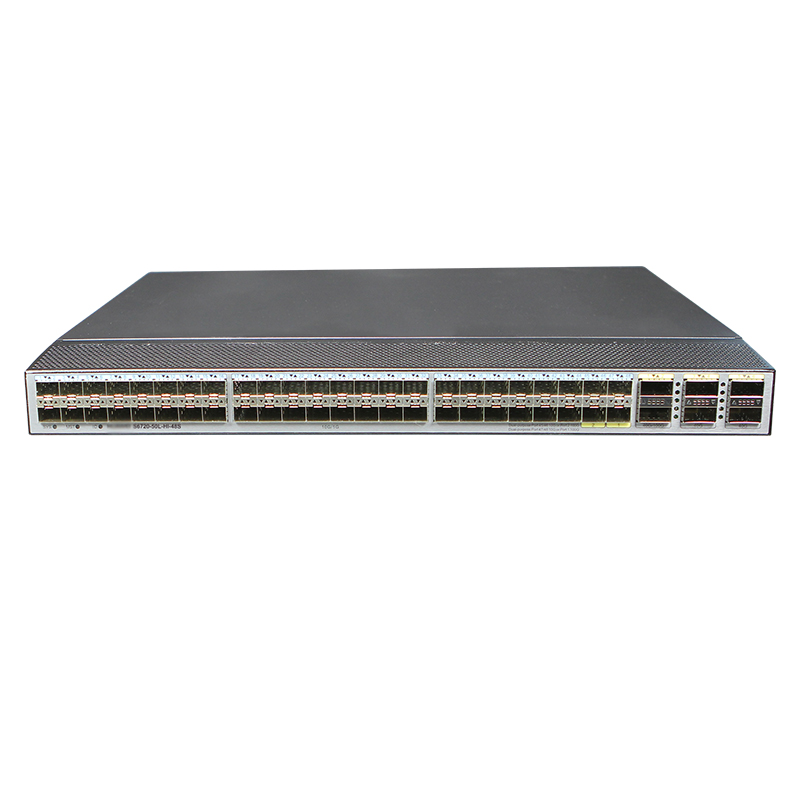

Model Number : | S6720-50l-hi-48s |
Supply Ability : | 10000 Set/Sets per Month |
Price : | $2,000.00 - $2,999.00/sets |
Products Status | Stock |
Switching Capacity | 2.56 Tbit/s |
Fixed Ports | 48 x 10 Gigabit SFP+, 6 x 40 Gigabit QSFP+ or 44 x 10 Gigabit SFP+,
4 x 40 Gigabit QSFP+, and 2 x 100 Gigabit QSFP28 |
Extended Slots | Not supported |
MAC Address Table | 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
VLAN Features | 4,094 VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
IP Routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP,
BGP4+, ECMP, and routing policy |
Interoperability | VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+,
and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) |
![]() |
